BATTERY TERMINAL FUSE BLOCK
Description

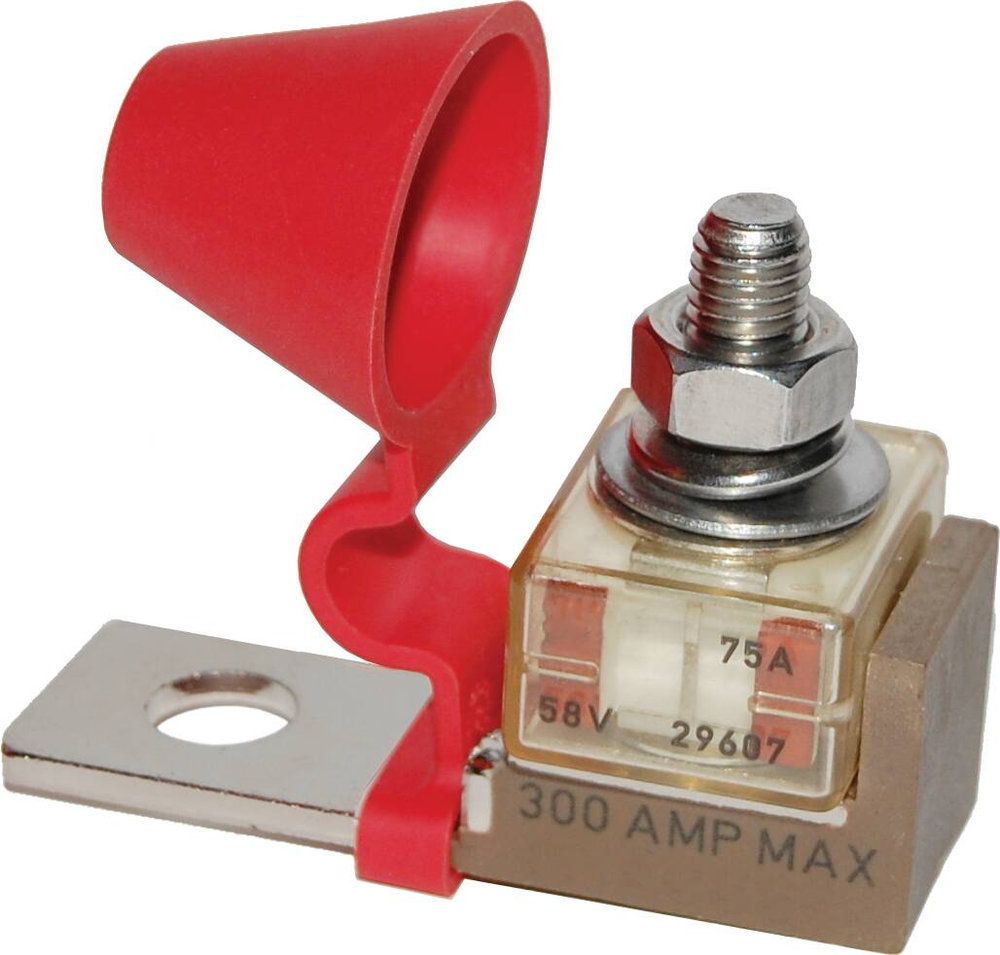

Blue Sea Systems MRBF Terminal Fuse Block – 30 to 300A (PN 5191). A compact, high-amp single-position fuse block designed for battery terminal or bus bar stud mounting.
- Compact, high-amp fuse block appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space locations
- Mounts on 3/8" battery post or bus bar stud
- Maximum Amperage: 300A
- Maximum Voltage: 58V DC
- Terminal Stud: M8 (5/16")
- Maximum Torque: 75 in-lb (8.47 Nm)
- Compatible MRBF terminal fuses: 30A–300A (sold separately)
- Meets ABYC 7" rule requirements
Specs and Features
| SKU | 63208505191 |
|---|---|
| UPC/GTIN | 632085051914 |
| BRAND | BLUE SEA SYSTEMS |
| Model Number | 5191 |
| COLOR | BLACK |
| MATERIAL | PLASTIC |
| SIZE | 30 TO 300A |
| Performance Gear? | No |
| Freight Truck Only? | No |
| Oversize Parcel? | No |
| Hazardous? | No |
| Instore Pickup Only? | No |
