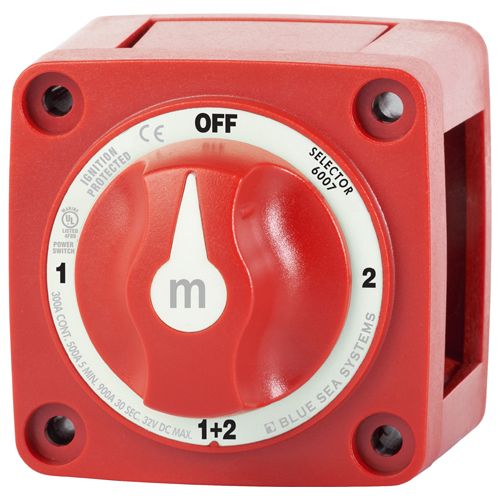

Switches isolated battery banks to all loads or combines battery banks to all loads
Make before break contact design allows switching between battery banks without power interruption

Specifications
Switch Type Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating 300A
Intermittent Rating 500A (5 min)
Cranking Rating 30 sec 900A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.77Lb (0.35 Kg)
Weight 0.77lb (0.35 kg)
